JK EMS PRODUCTS
Touch, Motion and Voice Controller for Chimney
JK EMS Solutions is offering the latest technology Smart Controller for Kitchen Hood Chimney,
which has unique feature of Voice Control along with Motion Sensor and Touch Control to
operate the Kitchen Hood Chimney with ease and comfort enhancing the kitchen. This special
feature of Voice Sensing Control makes the end-users to operate the Chimney with voice
commands without moving their hands and touching the front panel keys, which makes it
special and comfortable. The smart controller responds through speaker for its operation to
make it easy for the end users with their voice commands. This smart controller is highly
durable and reliable with wide input voltage range, high surge protection, easy to operate,

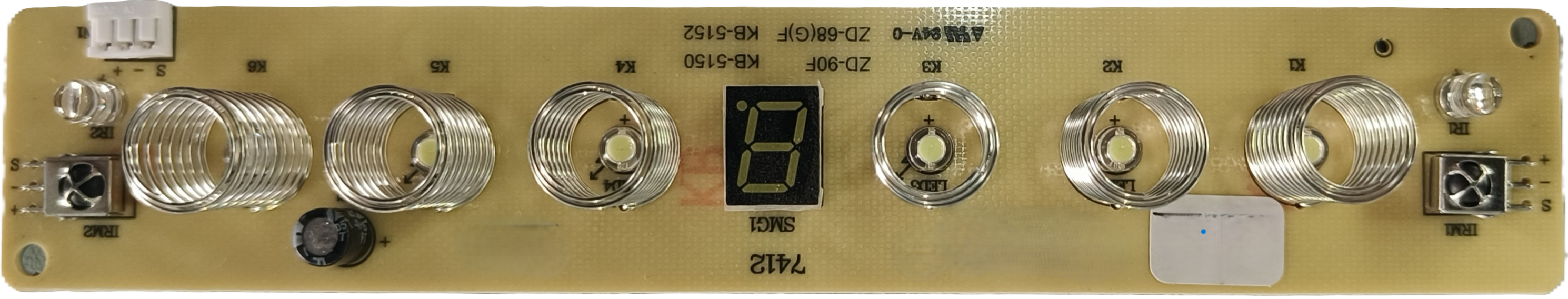

etc. The Smart Controller consists of main control board, front touch control & motion sensor
board and mic & speaker with the provision to connect two LED lights.
Smart Controls
Adjustable Speed
Functions
LED Lighting
Power ON / Standby
Functions
Smart Controls
Adjustable Speed
LED Lighting
Power ON / Standby
Key Features
Voice Control Feature
Voice-Activated Control for Hands-Free Operation
Motion Sensor Panel
Effortless Operation with Hand Gestures
Touch Control Panel
Elegant Touch Interface for Enhanced Convenience
Auto Cleaning Feature
Automatic Cleaning via Voice or Touch Commands
Operation:
| Function | Touch Control | Voice Command | Chimney Voice Response | Operation |
|---|---|---|---|---|
| Voice Control initialization | None | "Hi Chimney" | "Yes, I am here" | Voice Controller is ready to take voice commands |
| Power ON / Standby | Touch Power to make it on / standby | "Chimney On" / "Chimney Off" | "Ok, Chimney On" / "Ok, Chimney Off" | Chimney is on / Chimney goes to Standby mode |
| High Speed | Touch High Speed | "High Speed" | "Ok, High Speed" | Motor runs at high speed |
| Medium Speed | Touch Medium Speed | "Medium Speed" | "Ok, Medium Speed" | Motor runs at medium speed |
| Low Speed | Touch Low Speed | "Low Speed" | "Ok, Low Speed" | Motor runs at low speed |
| Delay Timer | Momentary Touch Delay for Delay Function | "Delay" | "Ok, Delay" | Delay timer starts for standby mode |
| Auto Cleaning | Long Touch Delay for Auto Cleaning Function | "Auto Clean" / "Auto Clean Stop" | "Ok, Auto Clean" / "Ok, Auto Clean Stop" | Auto Clean Starts. Display shows 09 minutes countdown / Auto Clean stops if it is running |
| Lighting | Touch Lighting | "Light On" / "Light Off" | "Ok, Light On" / "Ok, Light Off" | LED lights are on / LED lights are off |
